Applicability
- Model: P-Series
- Firmware version: 84.14.0.26 or later
- Firmware of W710D: 1.18.11 or later
-
Firmware of W710H: 1.0.14.5 or later
Requirement
Supported module and respective models.
- W710H & W610H
- W710D & W610D
Supported template version:
- YSDP_FanvilW710D: 1.0.2
Configuration
-
PNP：

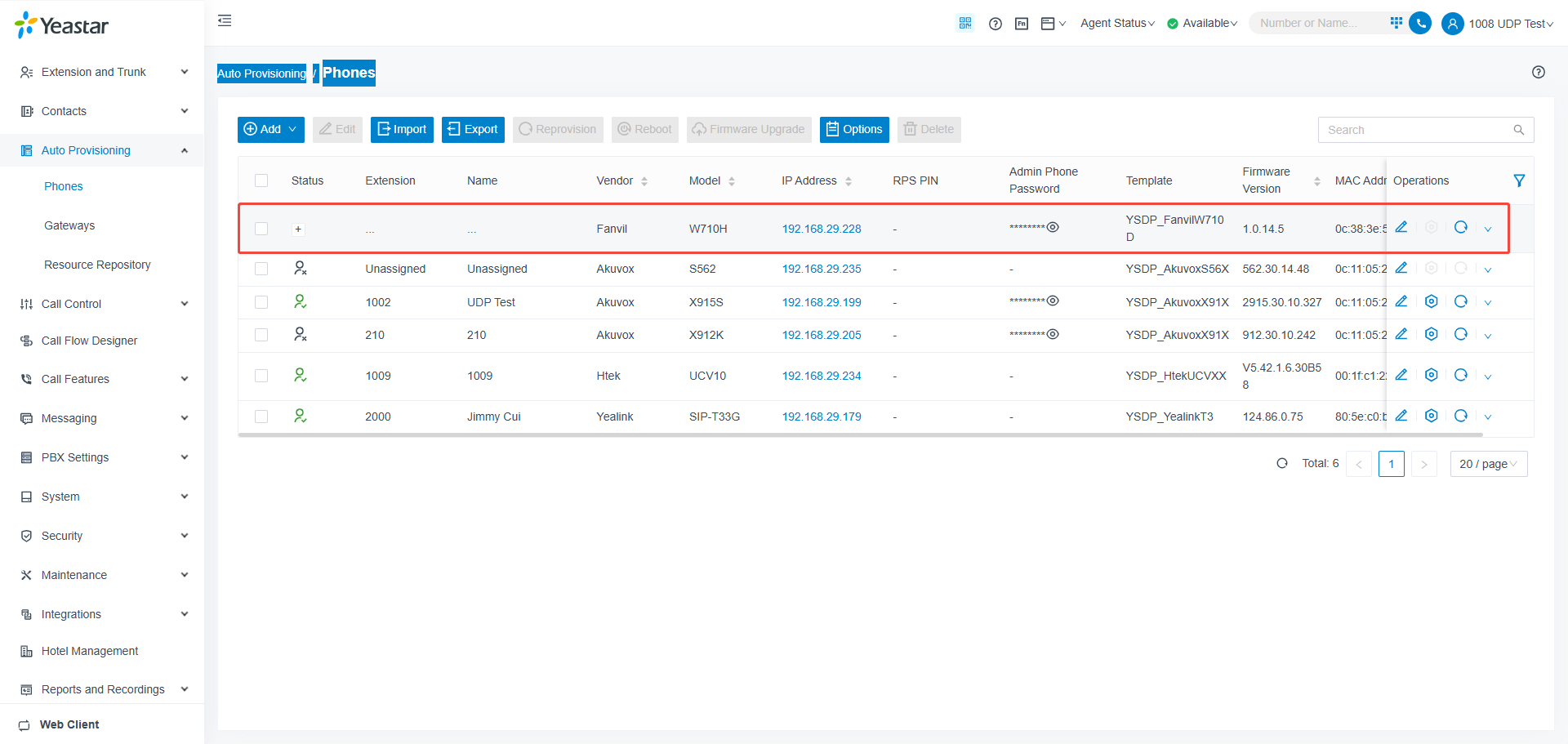

Connect the network cable to the WAN port of the W710H. After the device powers on, the PBX’s Auto Provisioning/Phones section will automatically add an auto provision record, allowing you to directly assign an extension to the device. If no record is added automatically, please reset the W710H.
Others：

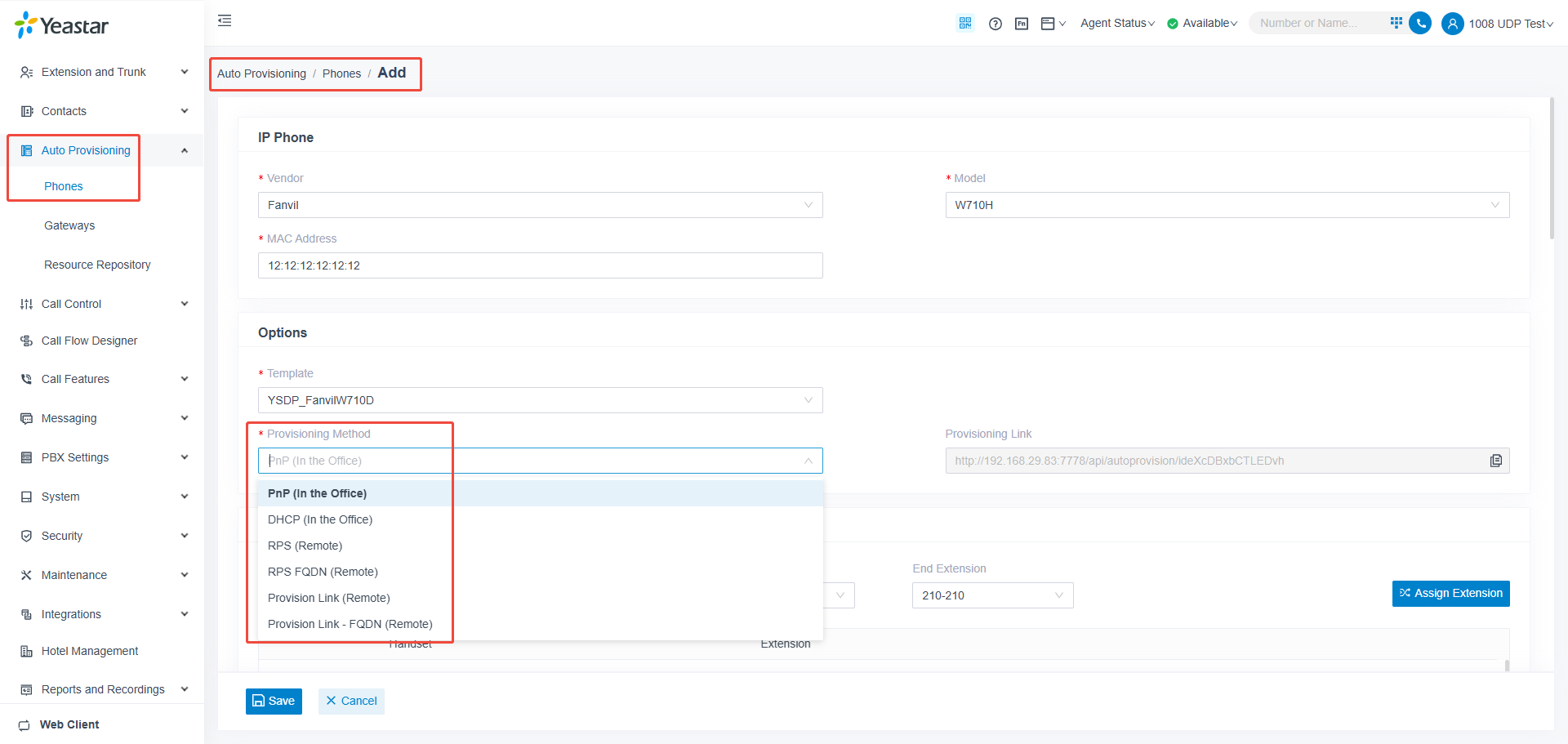

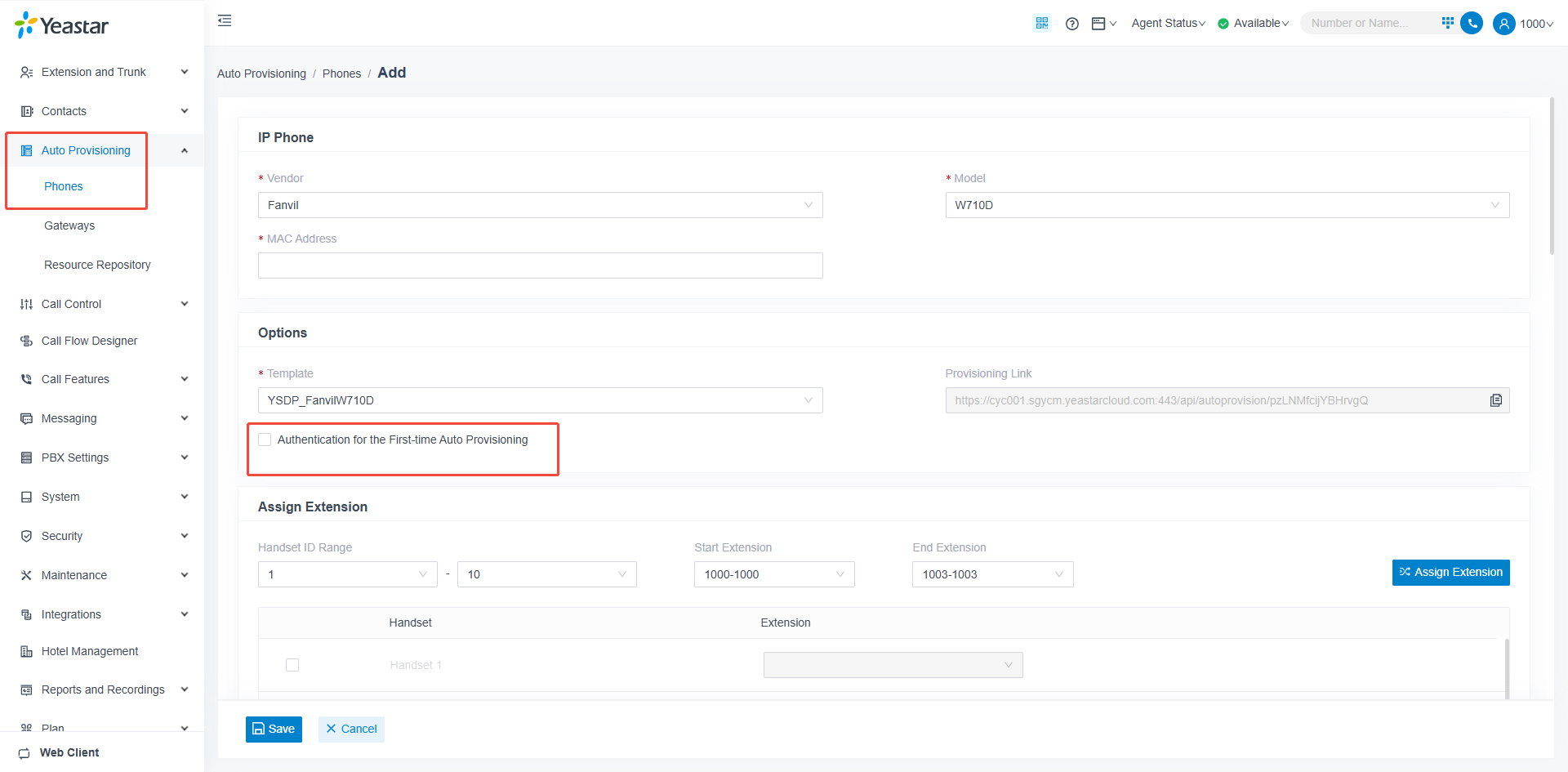

Manually add an auto provision record.
Note:
If you use RPS or PCE, please do not check "Authentication for the First-time Auto Provisioning."
-

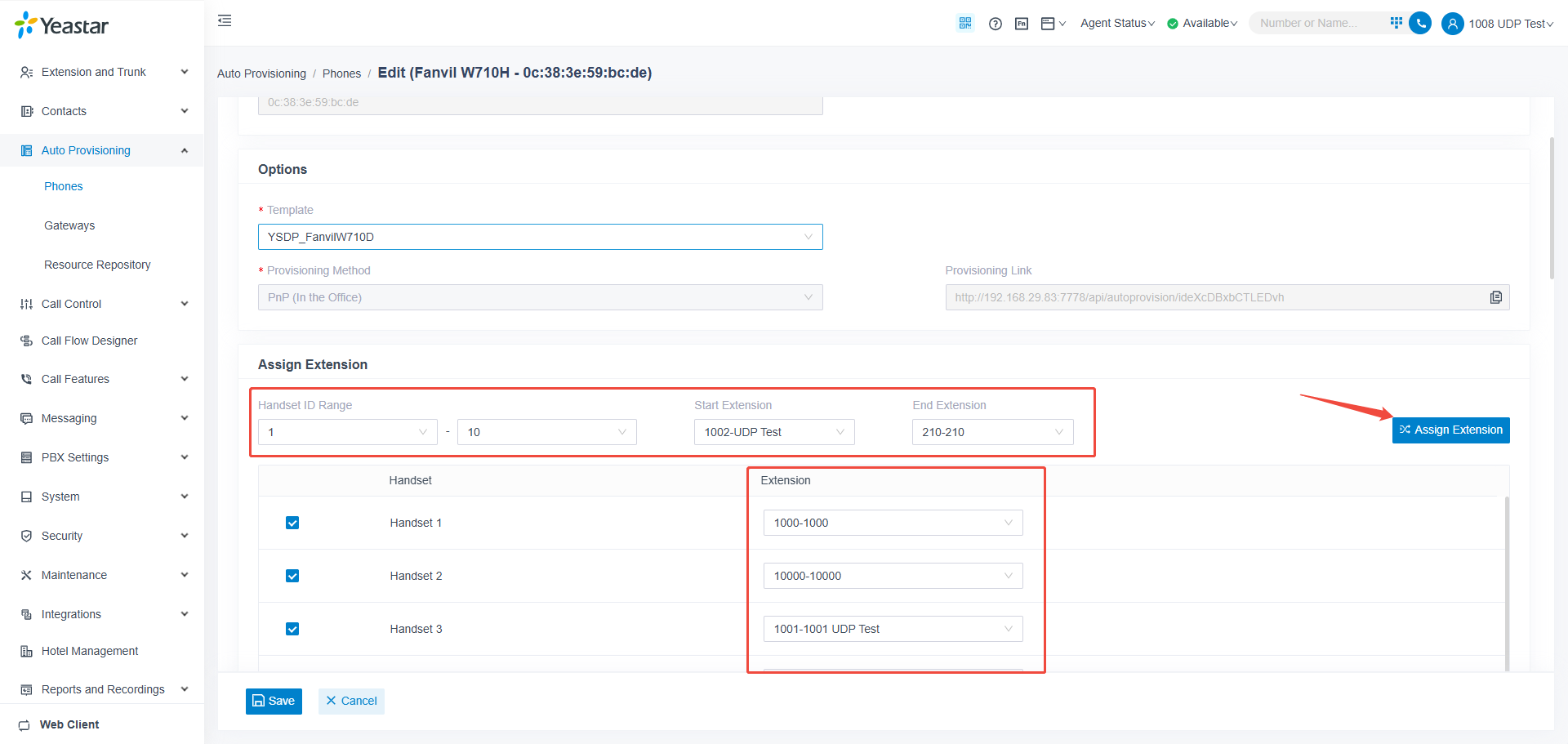

Assign an extension to the W710H.
-

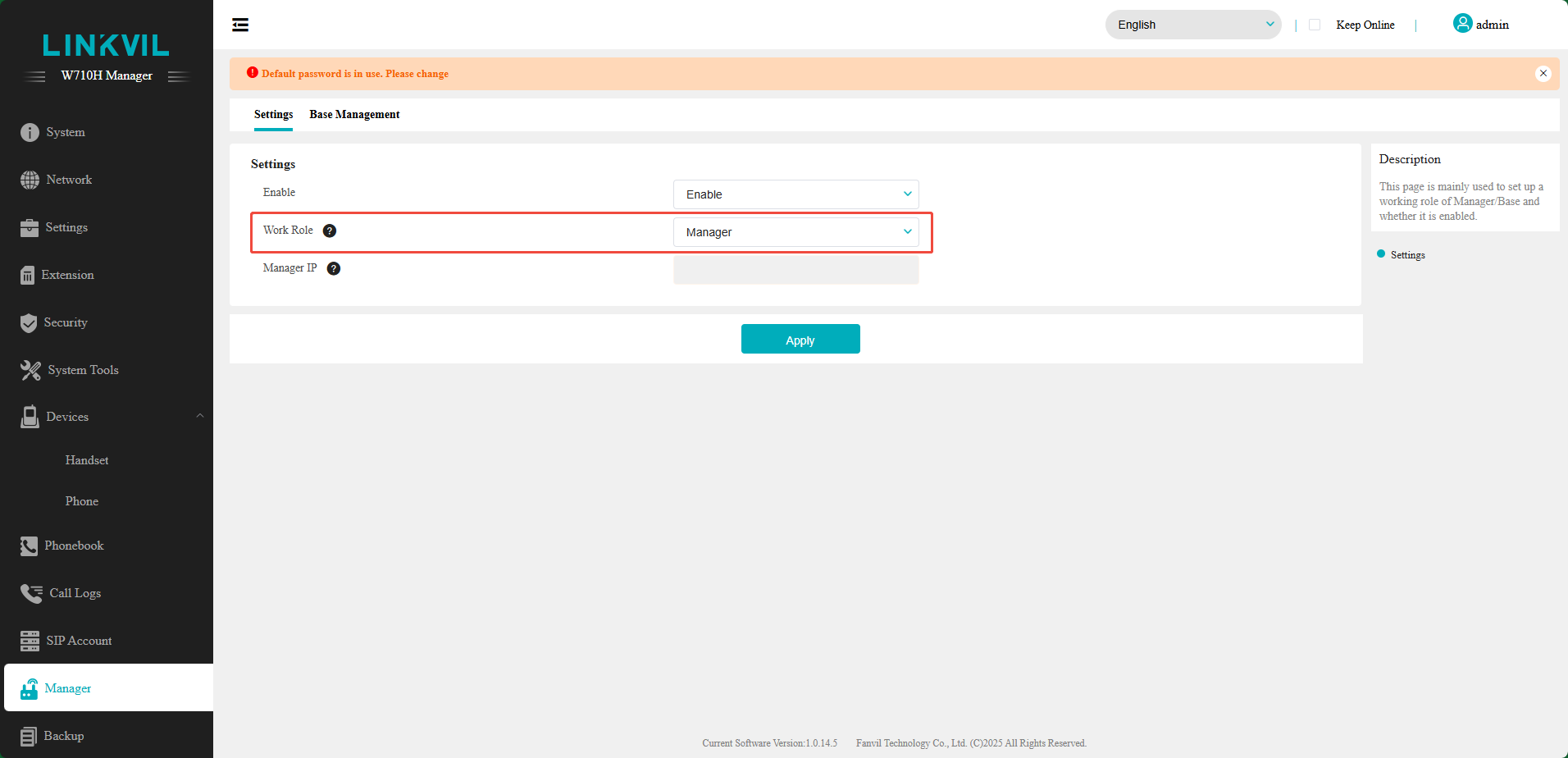

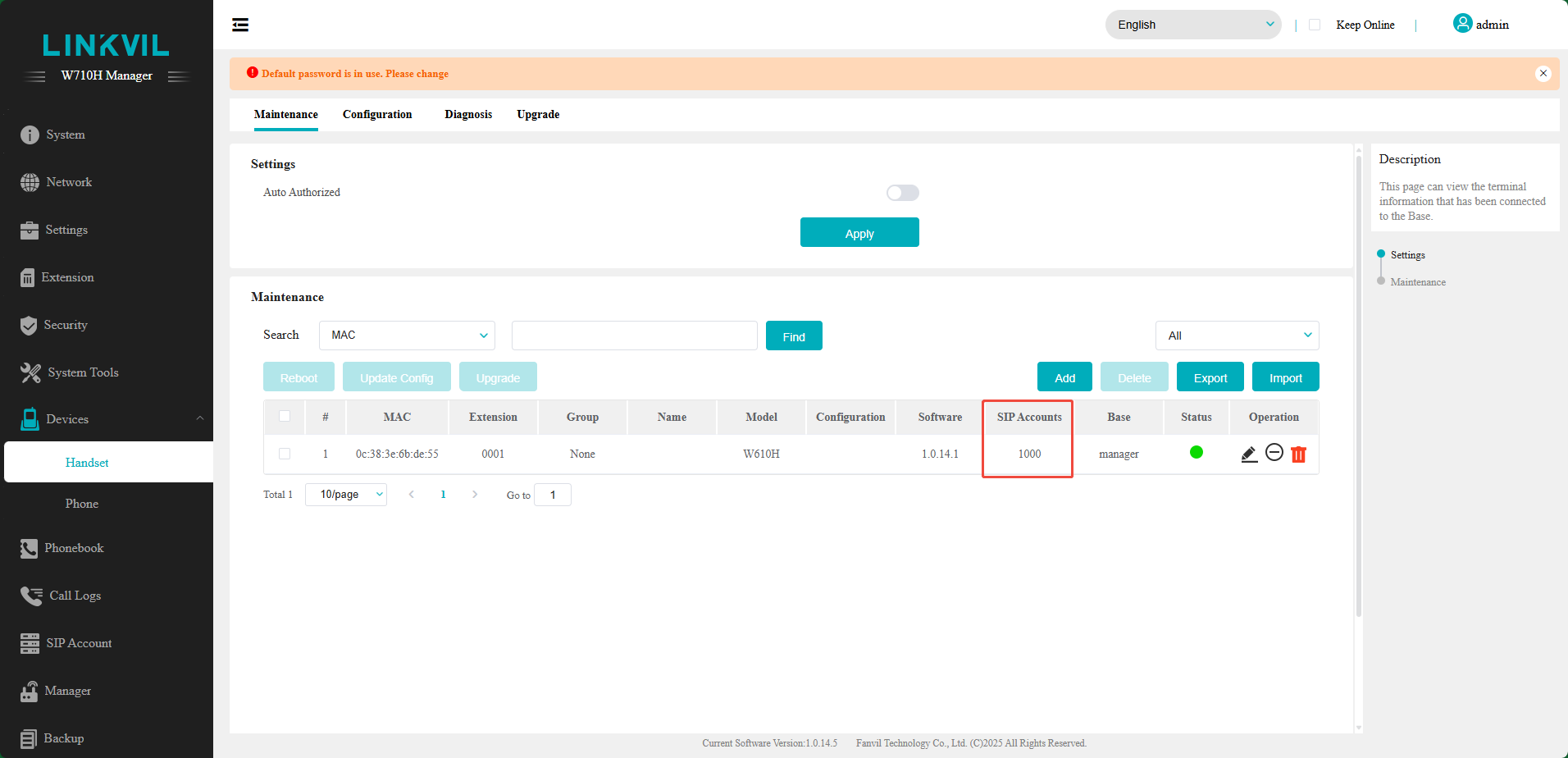

Configure the W710H as the manager.
-
Connect the W610H to the W710H, or the W610D to the W710D.

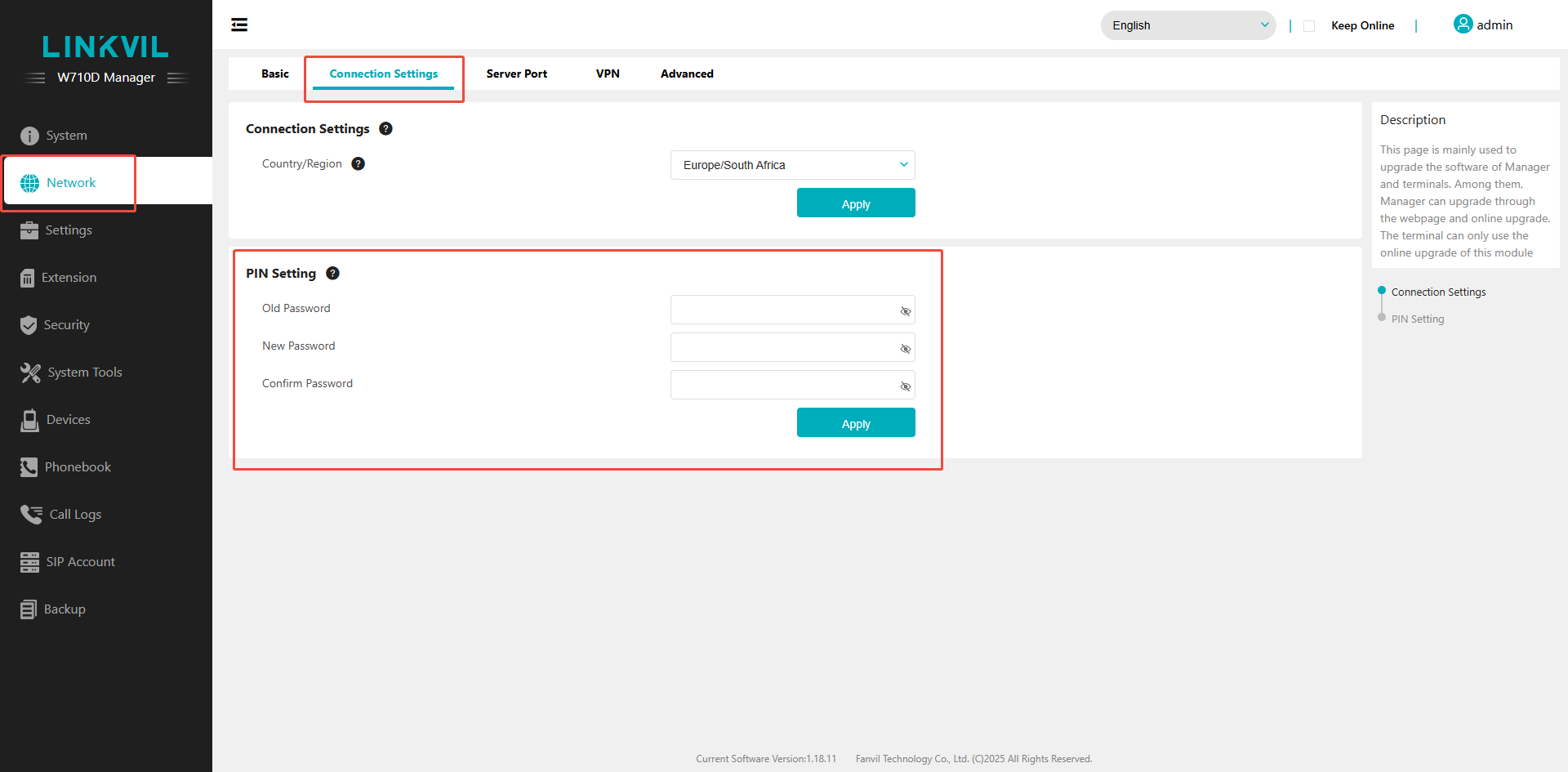

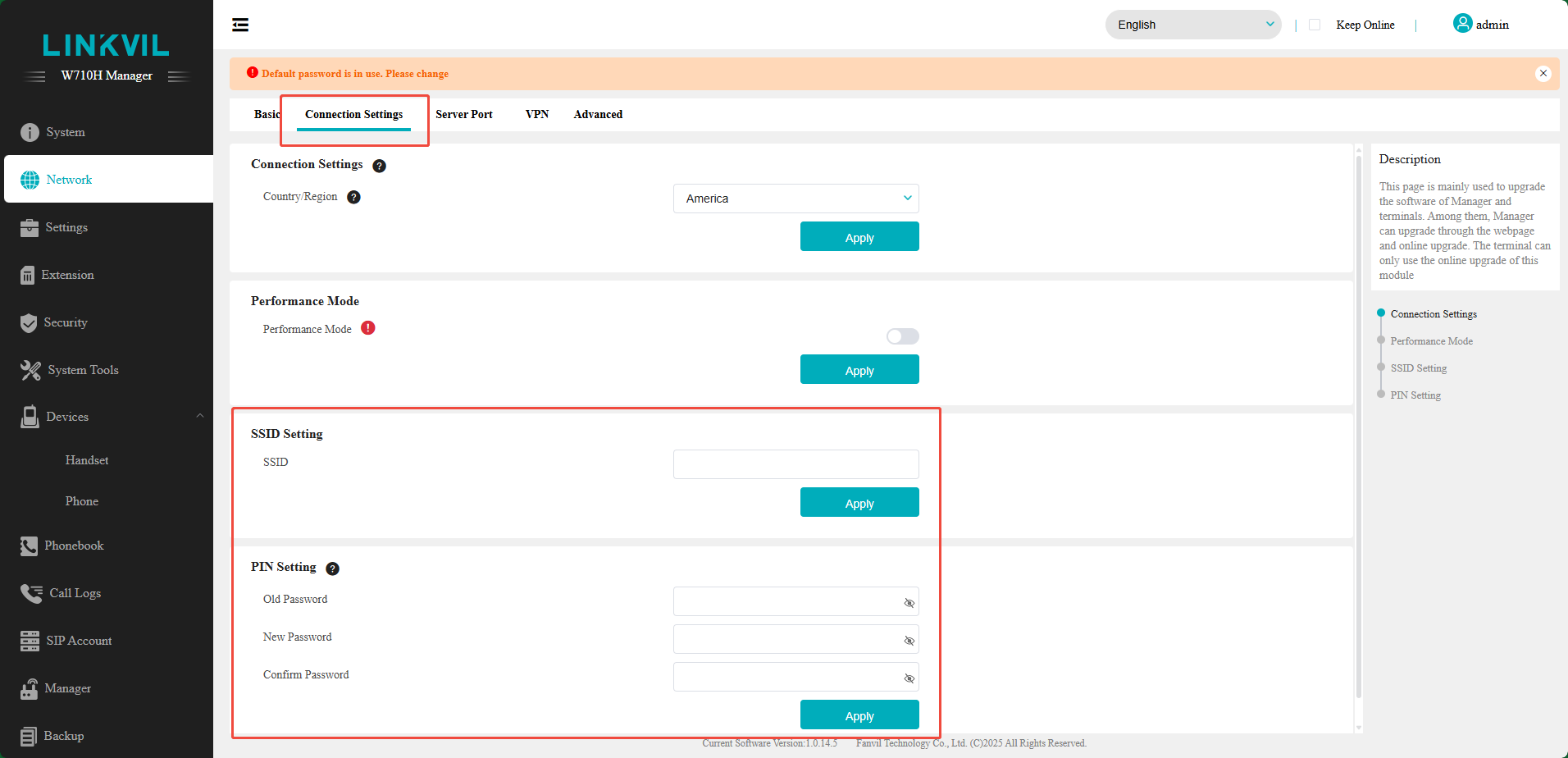

Press and hold the round button on the W710H or W710D for three seconds, then release it when the network indicator light stays solid and the other lights begin to flash rapidly, until the third icon—which depicts a computer and a mobile phone—starts to blink. Then, using the handset, navigate to the network settings, locate the corresponding SSID under ‘Available Networks,’ and enter the default password(W710D: i+0%aY81 or W610D: 1234) to establish a connection. If you are certain the password is correct yet still unable to connect, access the base GUI to modify the PIN.
Note:
LCJBA100546F0_W610D_LINKVIL_QIG_EN_V1.0_20241111

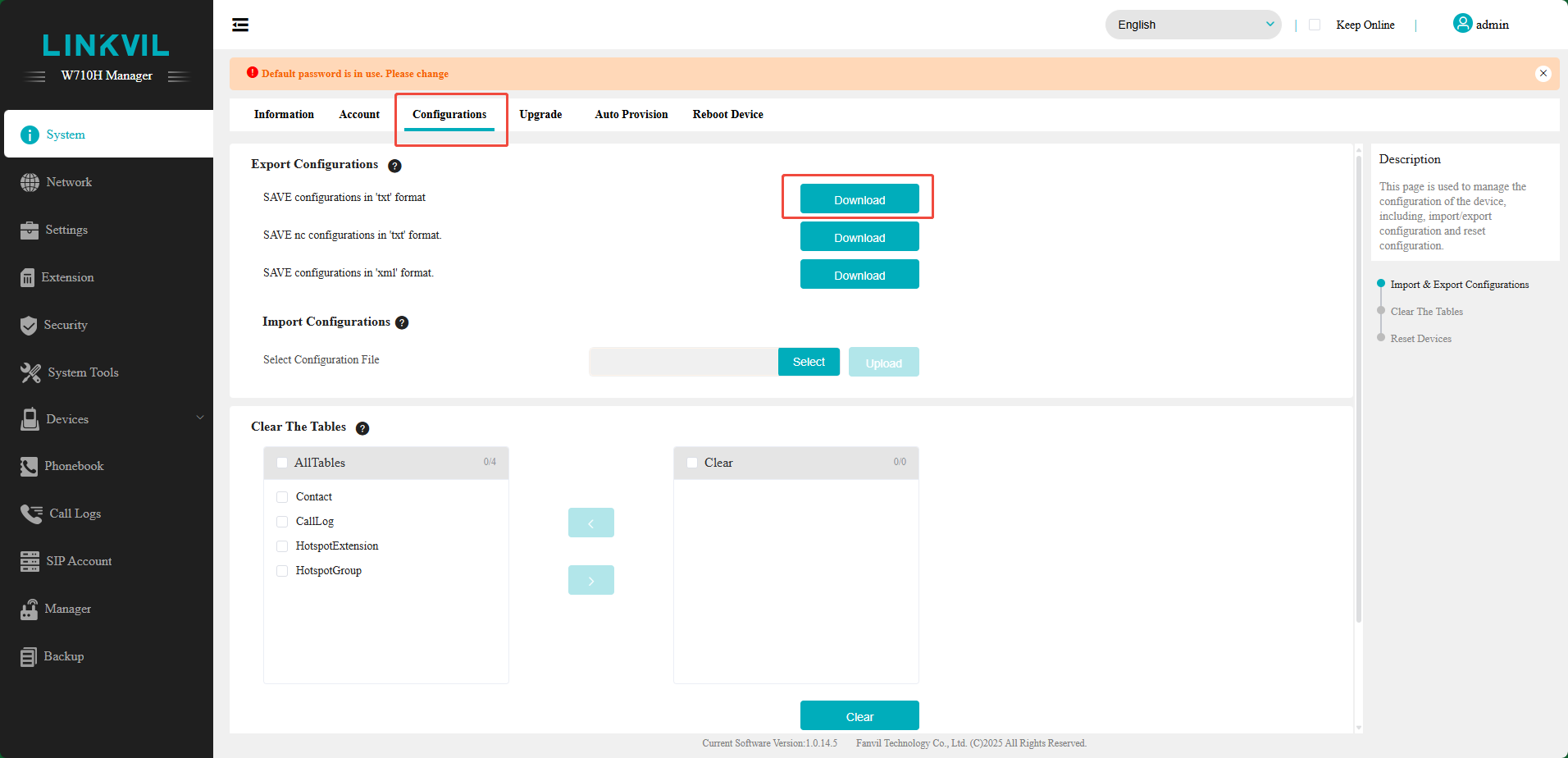

The default password also can be found by downloading and reviewing the phone’s configuration file.
-

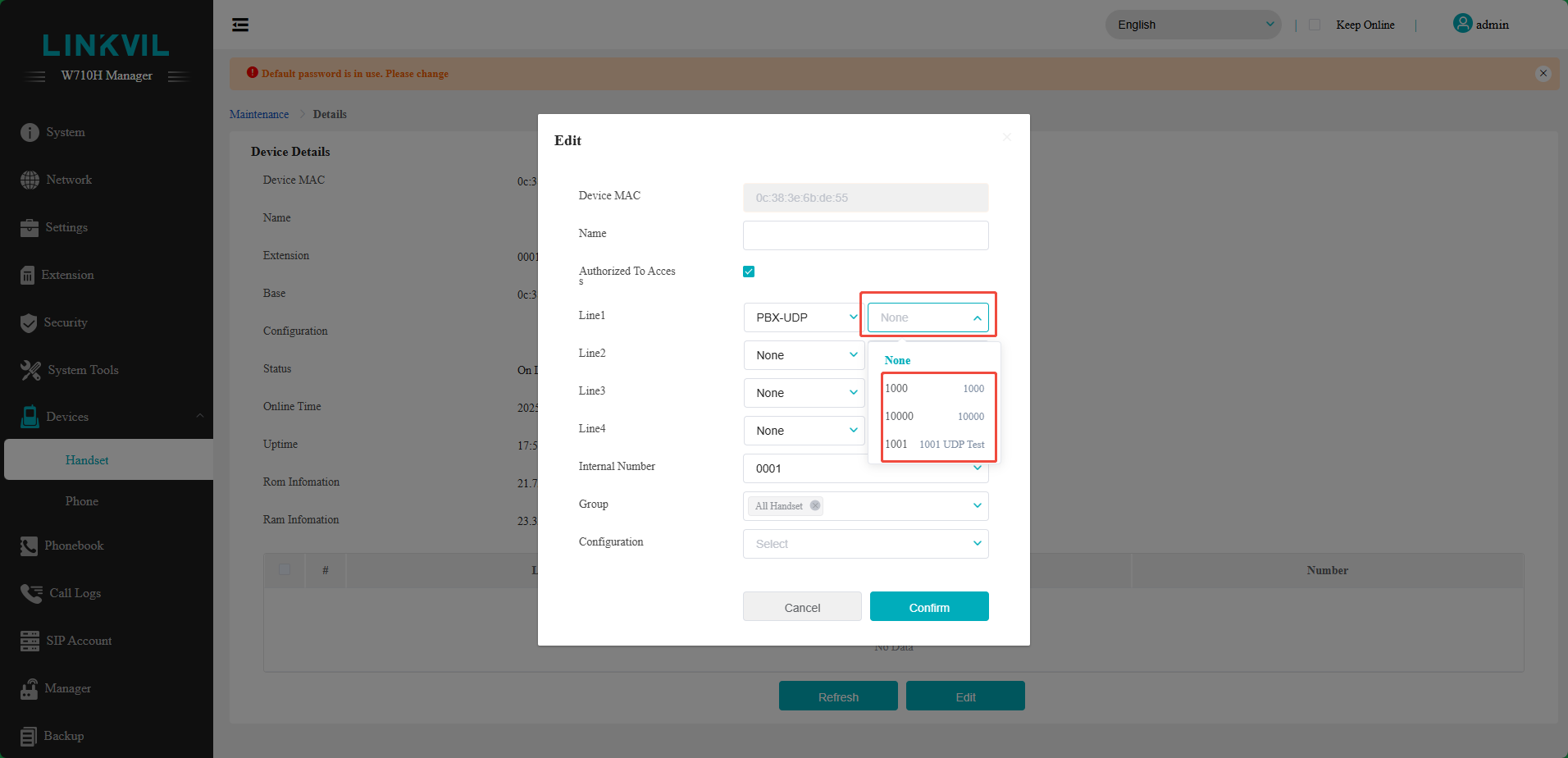

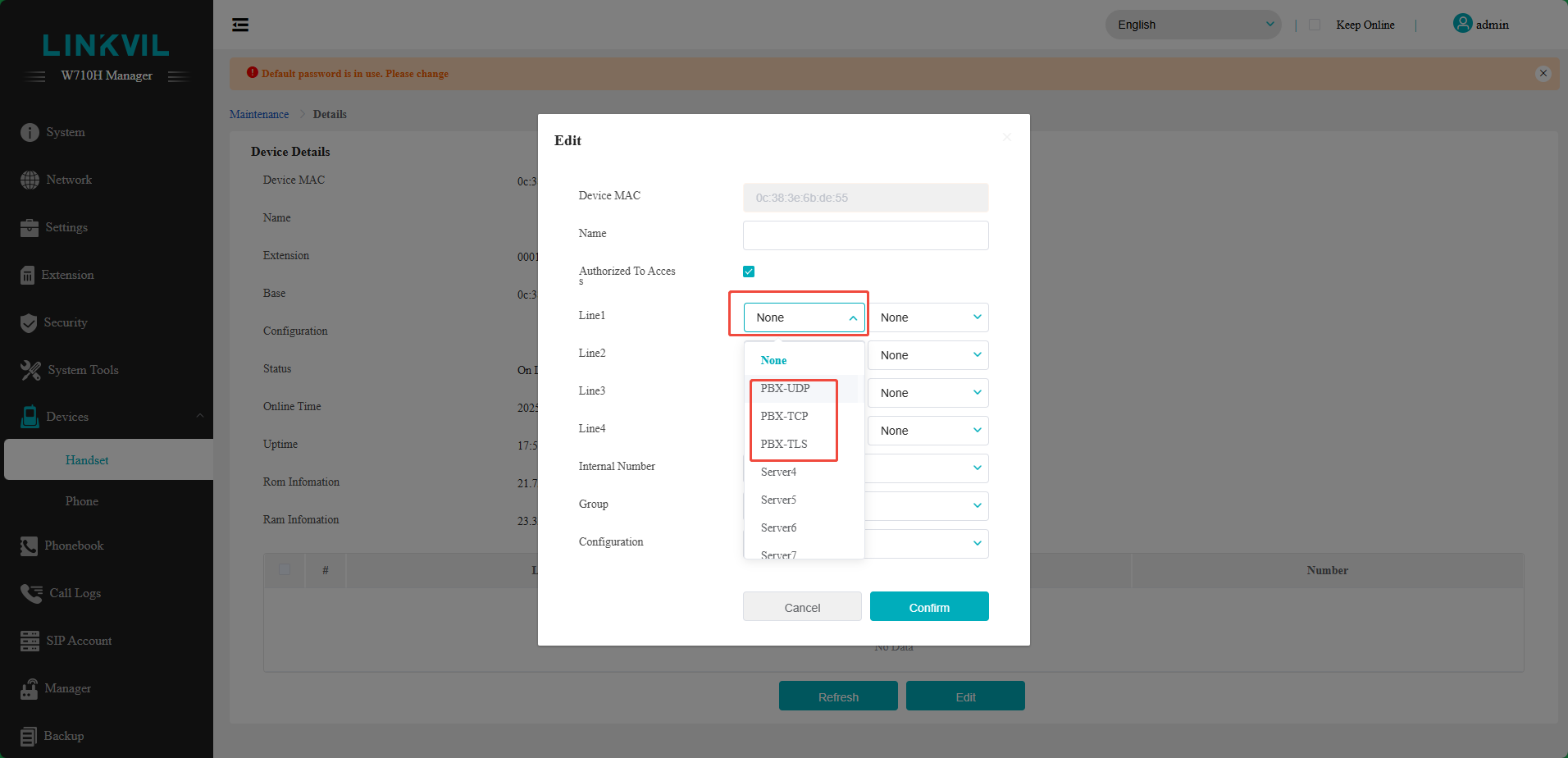

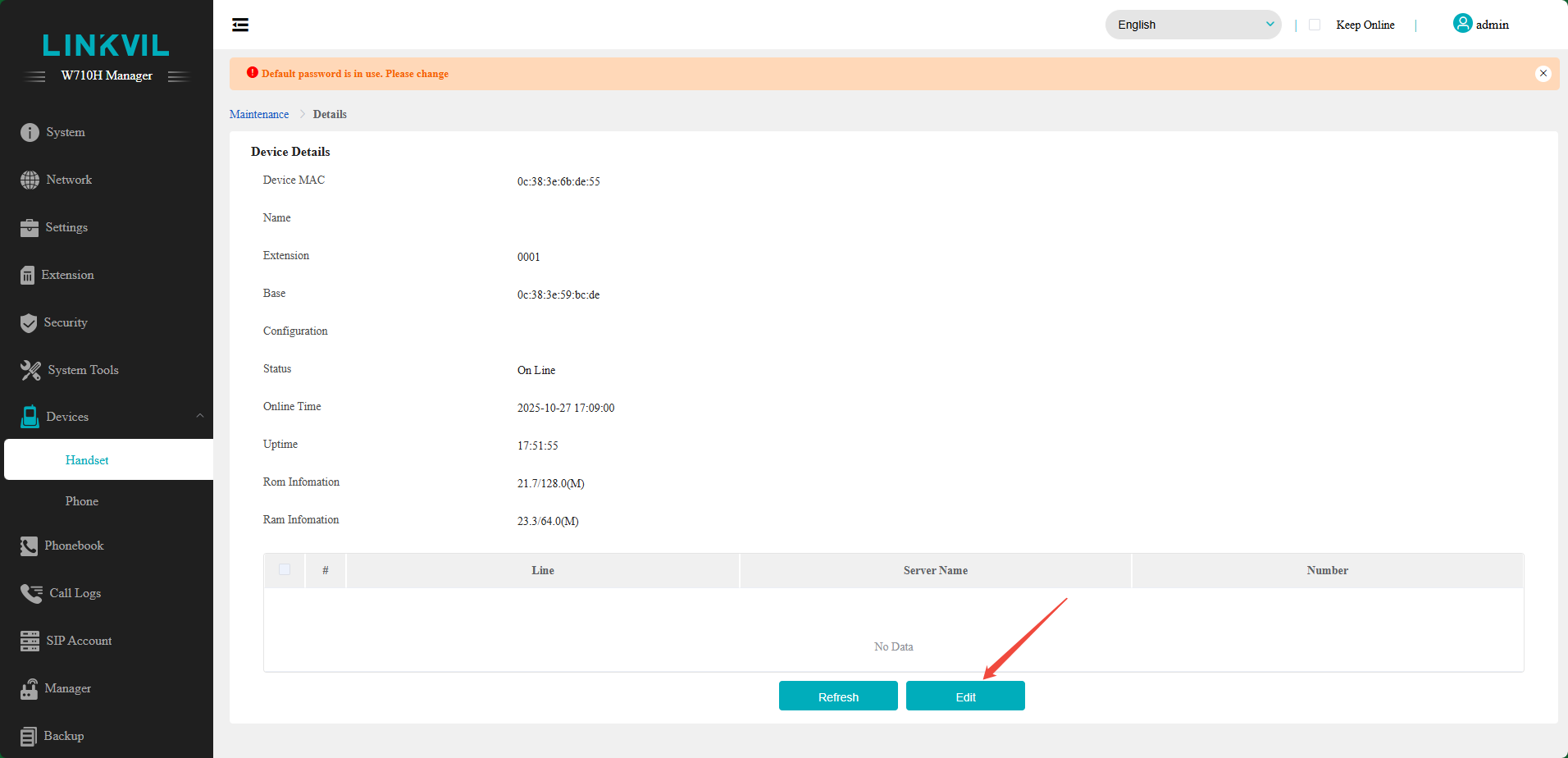

Assign an extension to the handset.
- Once the account has been successfully registered, it will be ready for use.
