Applicability
- Model: P-Series
- Firmware version: Any
- Template version: See the version mentioned in the guide
- Mitel Expansion module: D7, D7C, D8C
- Mitel Model: See the models mentioned in the guide
Requirement
Supported module and respective models.
- D7: 715, 720, 725, D785
- D7C: D717, D735, D785
- D8C: D812, D815, D862, D865
Supported template version:
- YSDP_SnomD: 1.0.25
- YSDP_SnomOld: 1.0.0
Configuration

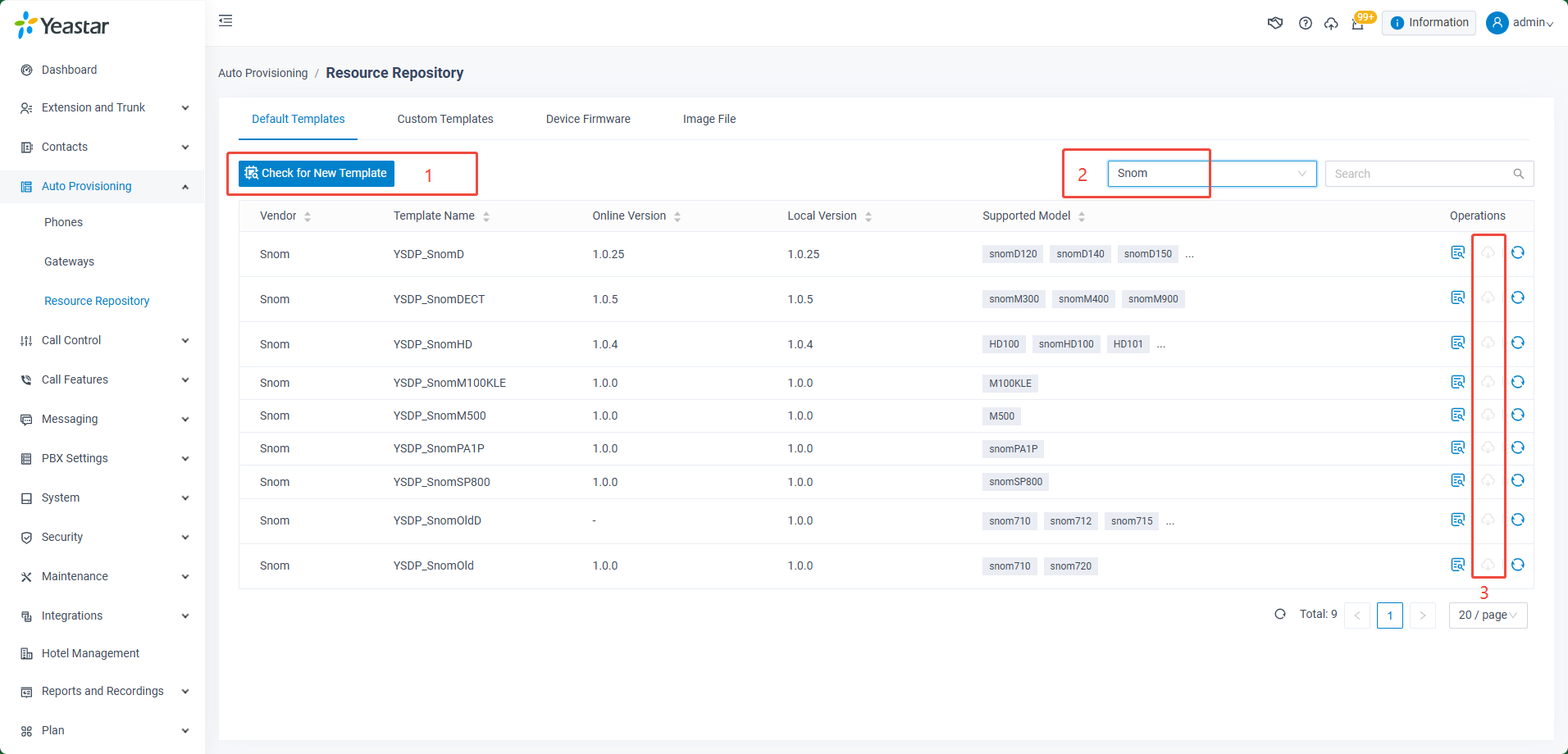

1. Update the template version to the required version:

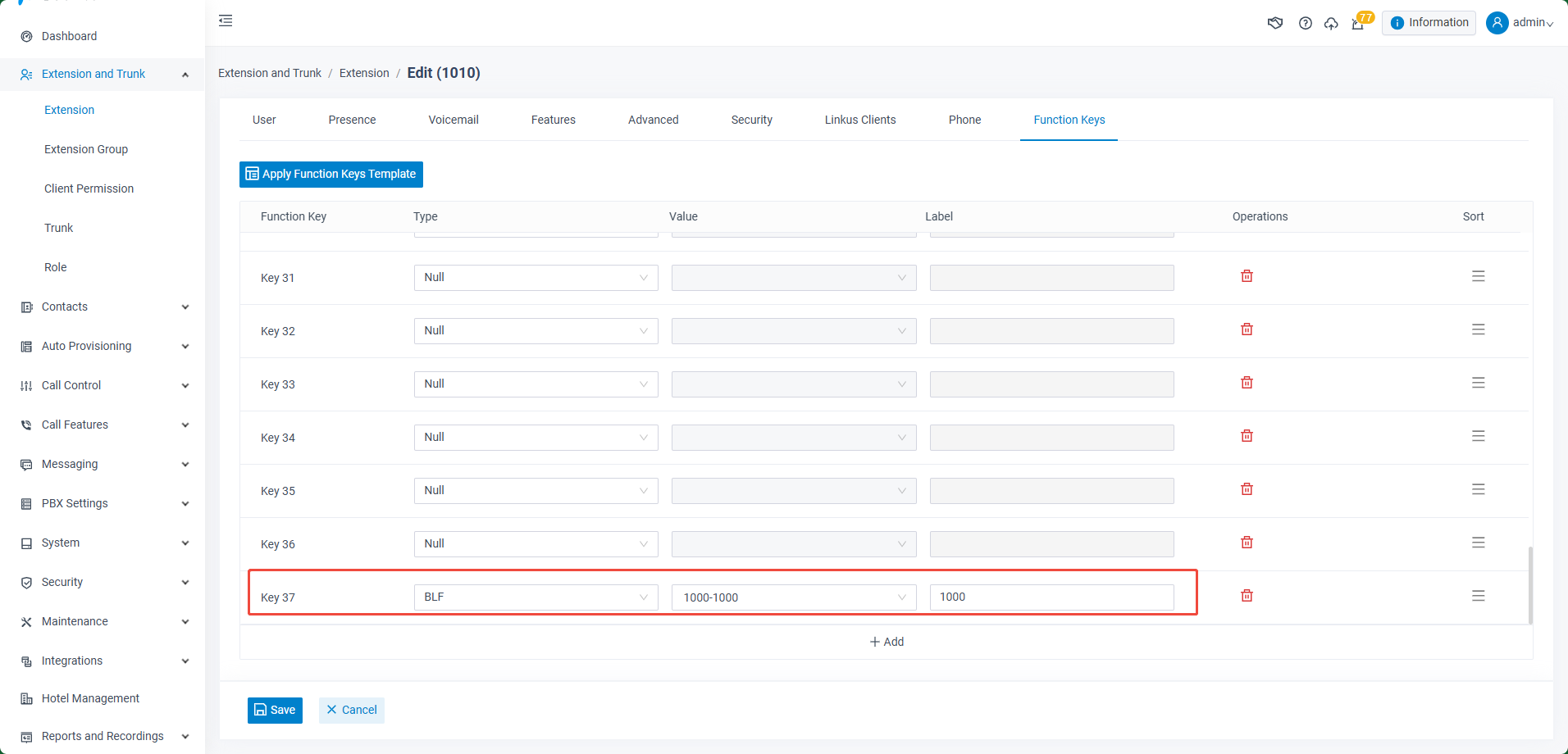

2. Configure the key.
The expansion key should be configured starting after the final top soft key.
For example, D865 support 36 top soft keys. To configure the expansion module D8C. User needs to configure the 37th key. The key started from 37th key are all for expansion module.
A extreme condition that you don`t configure any top soft keys. You have to configure 36 blank keys, then configure the expand module from 37th key.
3. Expansion Key mapping.
| Models | Expansion key started on PBX Function key menu |
| 715 | Key 6 |
| D717 | Key 4 |
| 720, 725 | Key 19 |
| D735 | Key 33 |
| D785 | Key 25 |
| D812, D862 | Key 29 |
| D815, D865 | Key 37 |
Limit
On P-Series PBX, it supports to set up to 120 keys due to the web interface limit.
