How to Provision Htek UC46 Expansion Module in P-Series

Applicability

• Model: P-Series
• Firmware version: Any
• Template version: See the version mentioned in the guide
• Mitel Expansion module: UC46
• Mitel Model: See the models mentioned in the guide

Requirement

Supported module and respective models.

• UC46: UC924, UC924E, UC924U, UC924W, UC926, UC926E, UC926U, UCV10, UCV20, UCV50, UCV52, UCV53

Supported template version:

• YSDP_HtekUC9XX: 1.0.8
• YSDP_HtekUCVXX: 1.0.1

Configuration

1. Update the template version to the required version:



2. Configure the key.

The expansion key should be configured starting after the final top soft key.

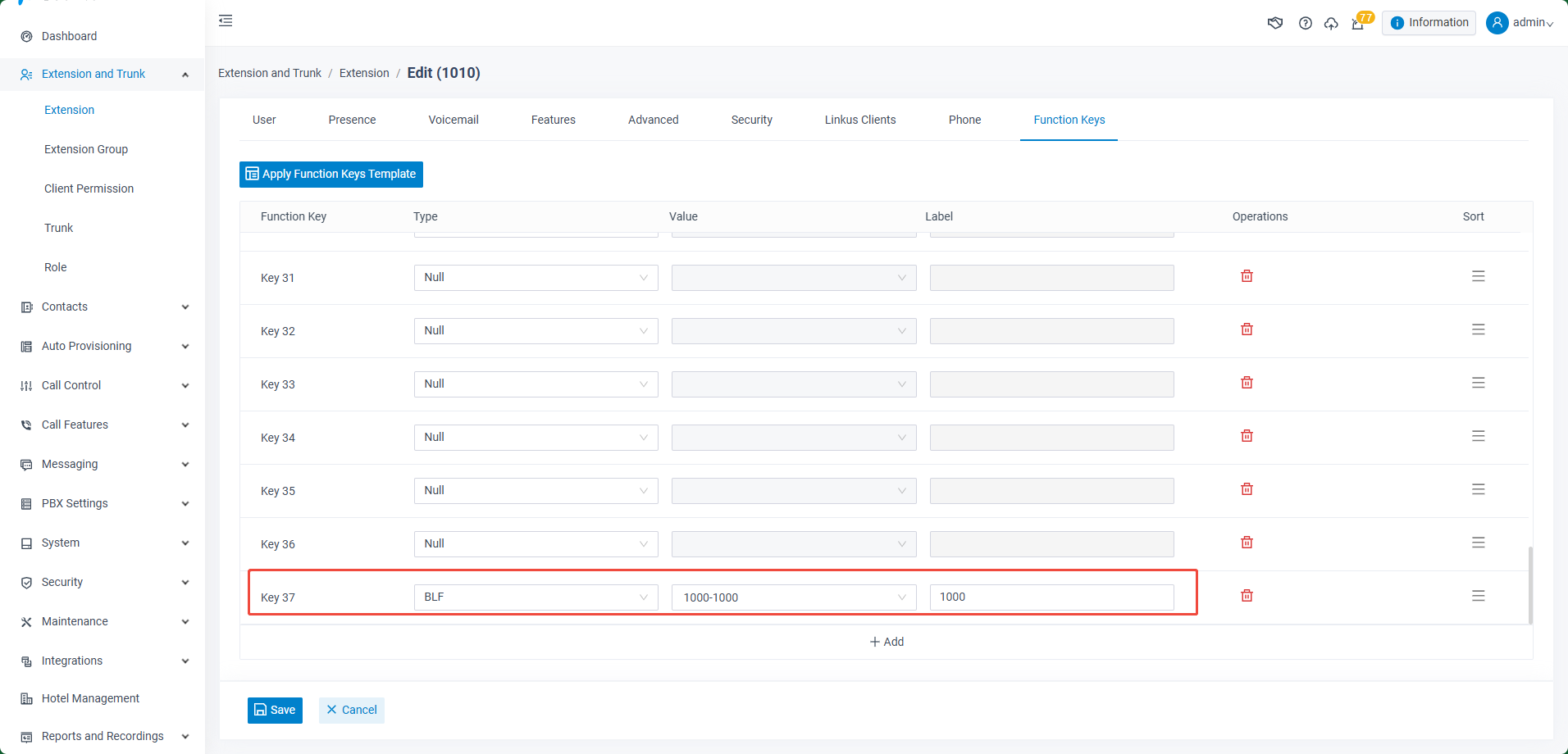

For example, UC926 support 36 top soft keys. To configure the expansion module UC46. User needs to configure the 37th key. The key started from 37th key are all for expansion module.

A extreme condition that you don`t configure any top soft keys. You have to configure 36 blank keys, then configure the expand module from 37th key.



3. Expansion Key mapping.

Models	Expansion key started on PBX Function key menu
UCV10, UCV20, UCV50, UCV52, UCV53	Key 37
UC926, UC926E, UC926U	Key 37
UC924, UC924E, UC924U, UC924W	Key 29



Limit

On P-Series PBX, it supports to set up to 120 keys due to the web interface limit.
