Applicability
- Model: P-Series
- Firmware version: Any
- Mitel Model: 6800/6900 series
Configuration
For example, you need configure 3 line keys to receive multiple calls on same phone.

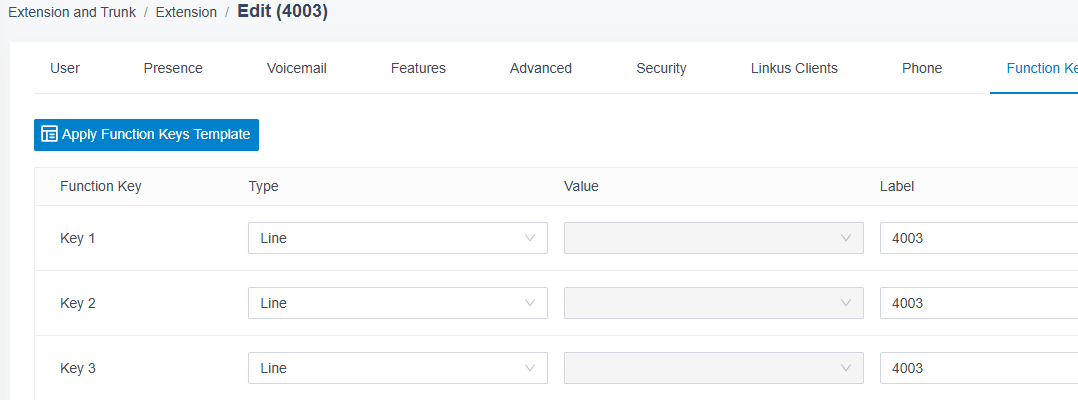

1 - Configure 3 keys on PBX with Line type.
2 - Create a template for your phone model, and choose Advanced mode, follow this guide: Create a Custom Auto Provisioning Template

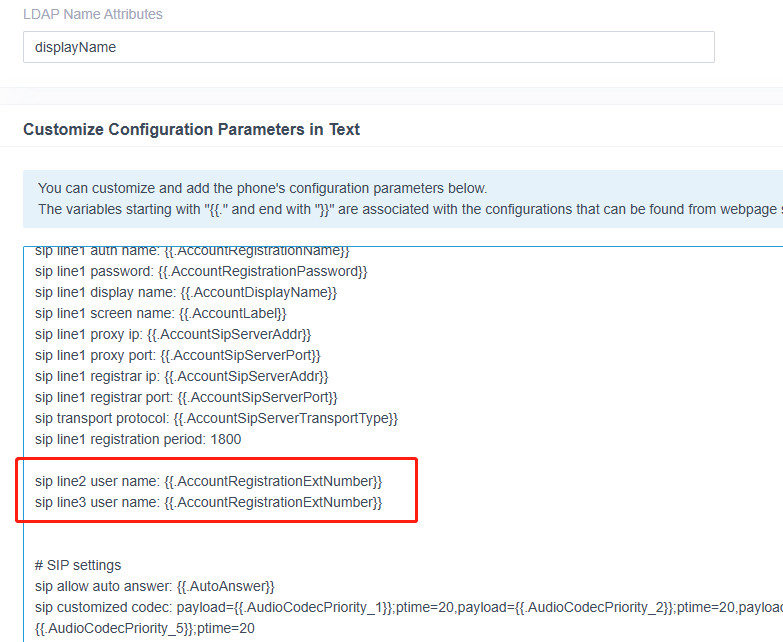

3 - Insert the following line the custom template.
sip line2 user name: {{.AccountRegistrationExtNumber}}
sip line3 user name: {{.AccountRegistrationExtNumber}}

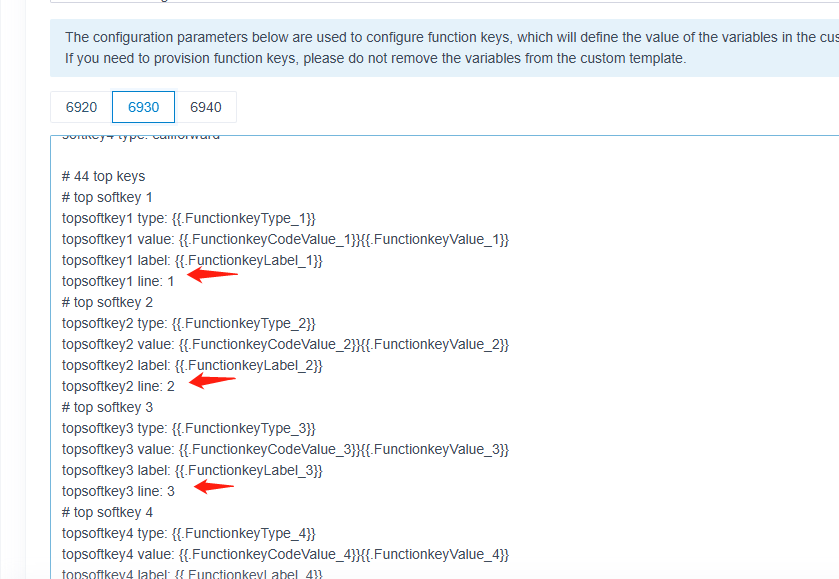

4 - Modify the function of the template
Select the right model. Modify the topsoftkeyX line: N
topsoftkey1 line: 1
topsoftkey2 line: 2
topsoftkey3 line: 3
Save the template.
4 - Go back to the Provisioning menu, select the template for the phone. Click save to Reprovision the phone. Then check if the custom config takes effect.
