Applicability
- Model: P-Series
- Firmware version: Any
- Template version: See the version mentioned in the guide
- Mitel Expansion module: M685, M695
- Mitel Model: See the models mentioned in the guide
Requirement
Supported module and respective models.
- M685: 6865i, 6867i, 6869i, 6873i
- M695: 6920, 6930, 6940
Supported template version:
- YSDP_Mitel68XX: 1.0.5
- YSDP_Mitel69XX: 1.0.5
Configuration

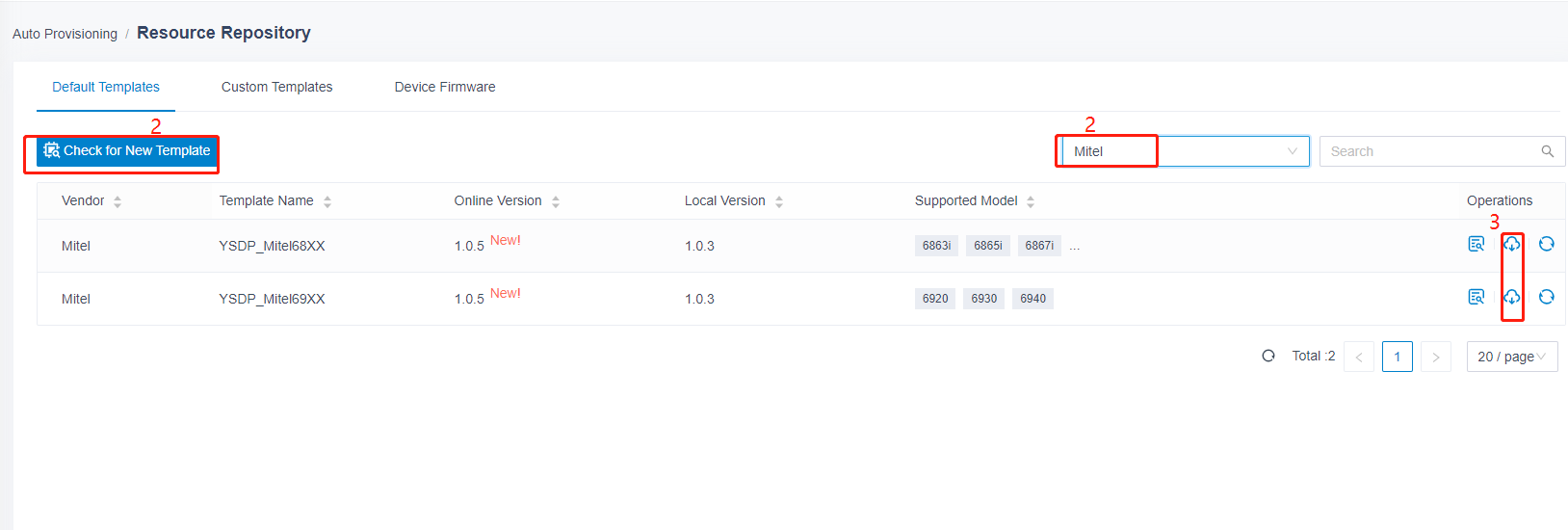

1. Update the template version to the required version:
2. Configure the key.
The expansion key should be configured starting after the final top soft key.
For example, 6867i support 44 top soft keys. To configure the expansion module M685. User needs to configure the 45th key. The key started from 45th key are all for expansion module.
Also a note, the blank key(meaning type is selected as null) is allowed to exist between key 1 and key 22.
A extreme condition that you dont' configure any top soft keys.. You have to configure 44 blank keys, then configure the expand module from 45th key.
3. Expansion Key mapping.
| Models | Expansion key started on PBX Function key menu |
| 6865i | Key 9 |
| 6867i, 6920 | Key 21 |
| 9869i, 6930 | Key 45 |
| 6873i, 6940 | Key 49 |
Limit
On P-Series PBX, it supports to set up to 120 keys due to the web interface limit.
