In this guide, we will show you how to register Vodafone sip trunk in P-series Appliance Edition(P550/560/570) and P-series Software edition.
Normally, Vodafone will provide the sip trunk information to you as below.

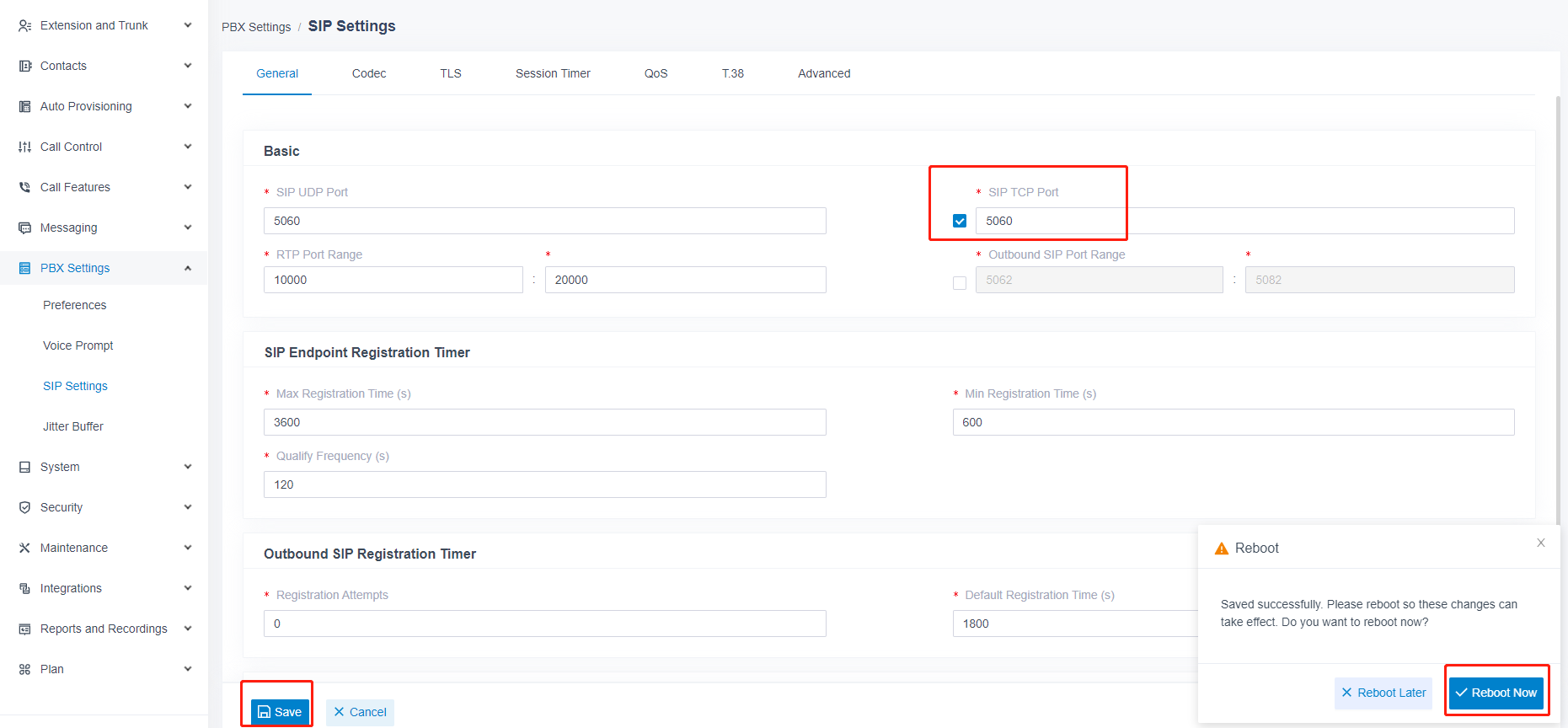

1. Enable SIP TCP Port
PBX Settings > SIP Settings
Enable SIP TCP Port and reboot to take it effect

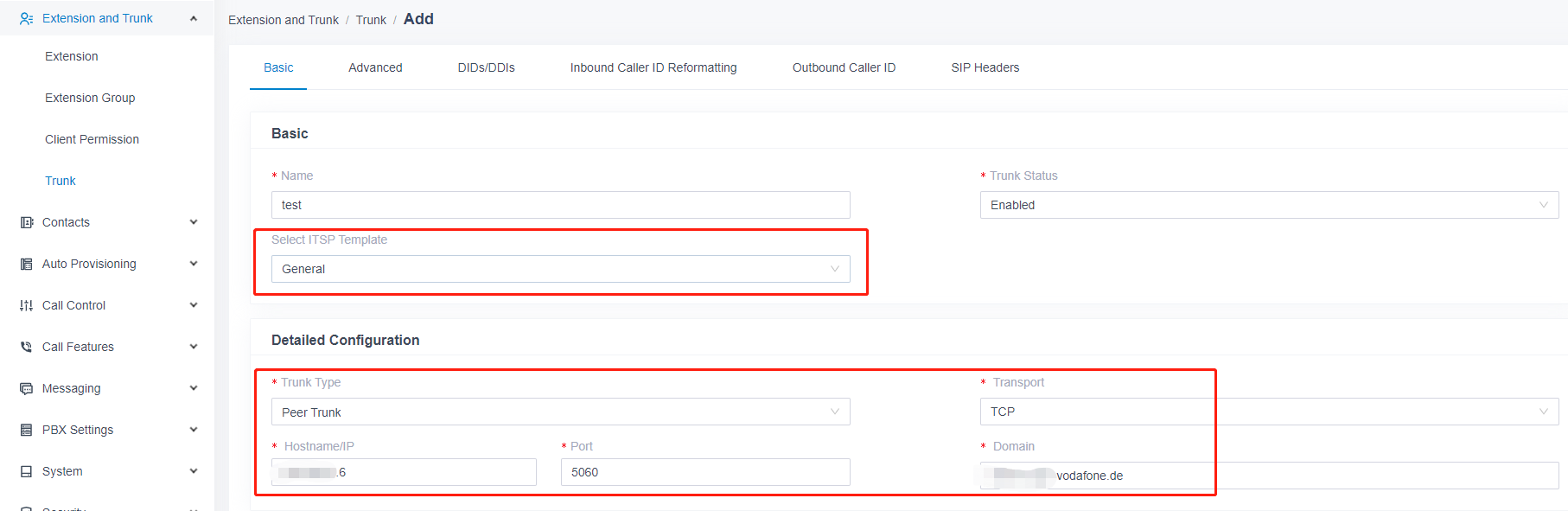

2. Add new sip trunk
Extension and Trunk > Trunk
1) Select ISTP Template with General
2) Set Trunk Type with Peer Trunk
3) Select Transport with TCP
4) Set Hostname/IP with Vodafone Service_SBC_IP
5) Set Domain with Vodafone Sip_Domain

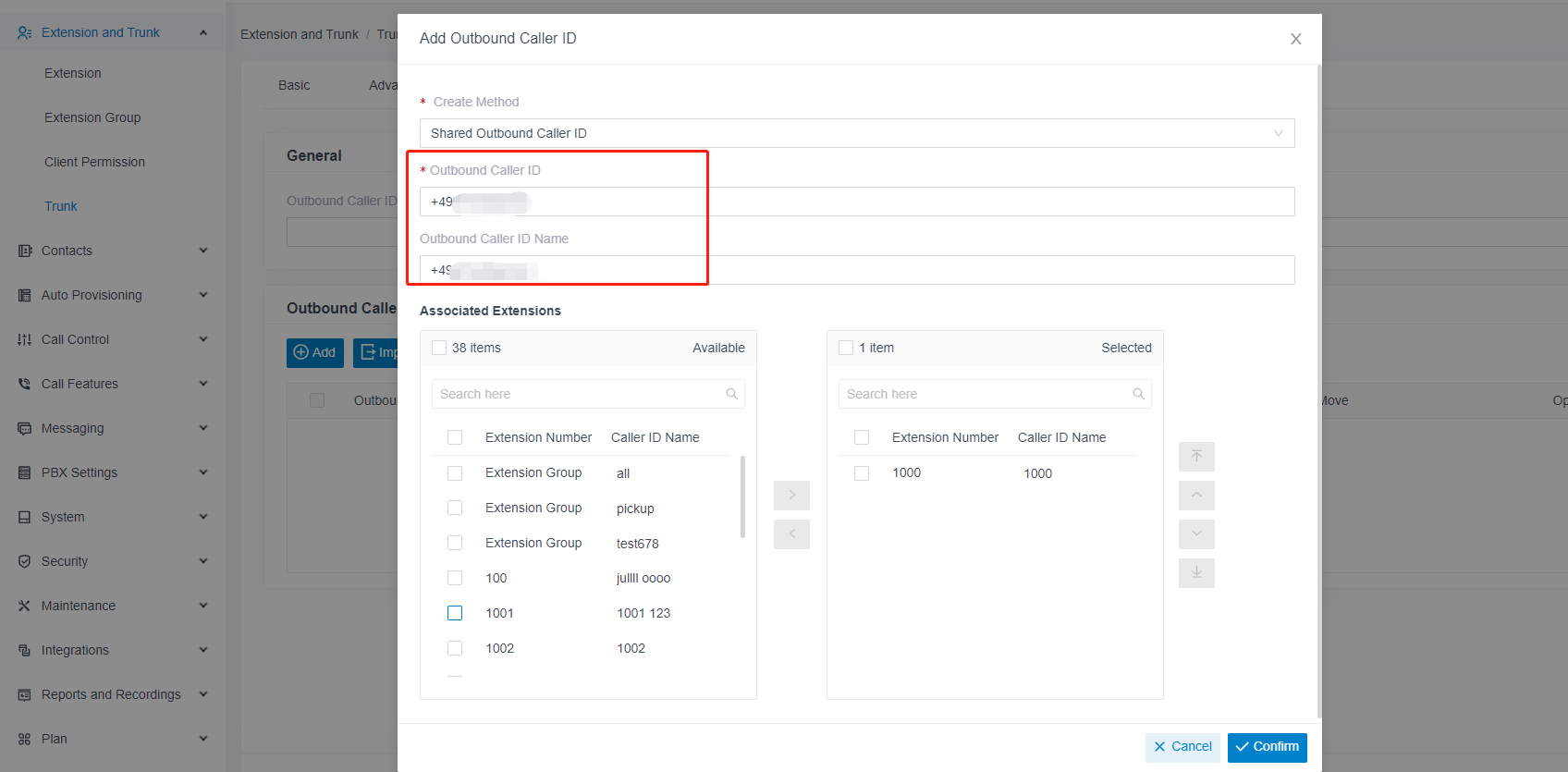

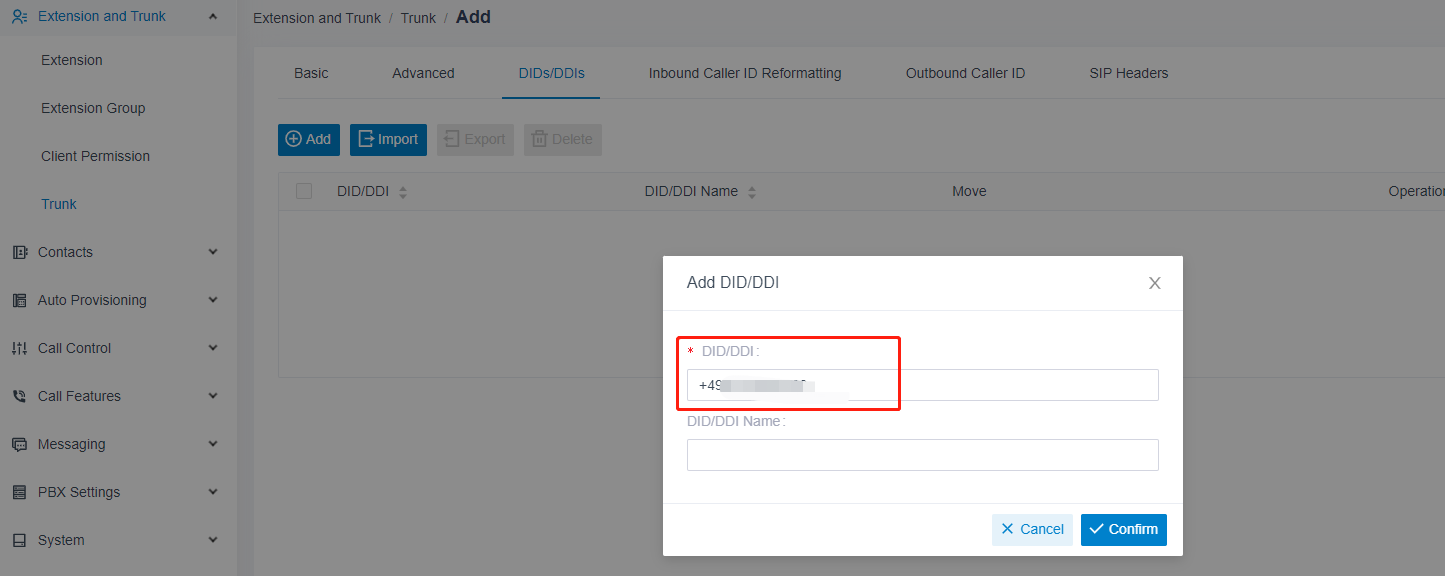

3. Add DIDs/DDIs or Outbound Caller ID
If you want to configure the DID or Outbound Caller ID, please make sure the number is start from +49
