PBX Migration Tool

The PBX Migration Tool is used to generate the csv (extensions.csv and contacts.csv) of 3CX PBX to the csv which can be imported into P series



Requirements

  • Windows 8 and above

Version

PBX Migraion Tool PAE PSE PCE
1.0.0 37.13.0.29

83.13.0.29

84.13.0.29



Hover over "Yeastar" for 3 seconds then you will see the version





Procedure

1.Download

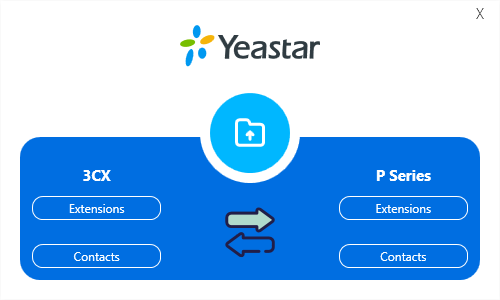

2.Double click to start the tool

3.Click the "upload" button and choose the folder





The Tool will check all the csv in the folder(make sure they are not open in other application)

only those csv matched the requirements below will be listed



extensions.csv

required fields:Number、EmailAddress



contacts.csv

required fields:FirstName、LastName、Company、Business、Mobile、Home

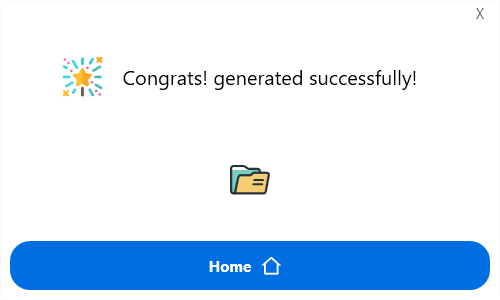

4.Click "Generate" and Click "Folder" button at the middle to see the result



5.Import into P series

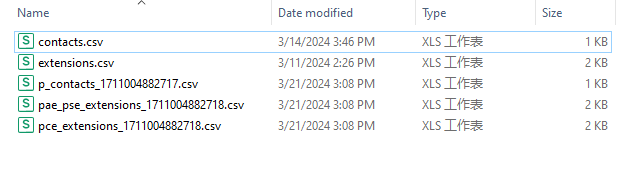

You will see new csv in the folder




p_contacts contacts for all P series PBX
pae_pse_extensions extensions for P hardware and P software PBX
pce_exensions extensions for P cloud PBX



Bug Reporting and Suggestions



You are always welcome to give us suggestions! For any bug or suggestion kindly raise a ticket for us,We will try our best to help!
