How to configure Ims.etisalat.ae sip dedicated line to connected to PBX WAN port with DHCP mode



Available for S-Series and P-Series PBXs.

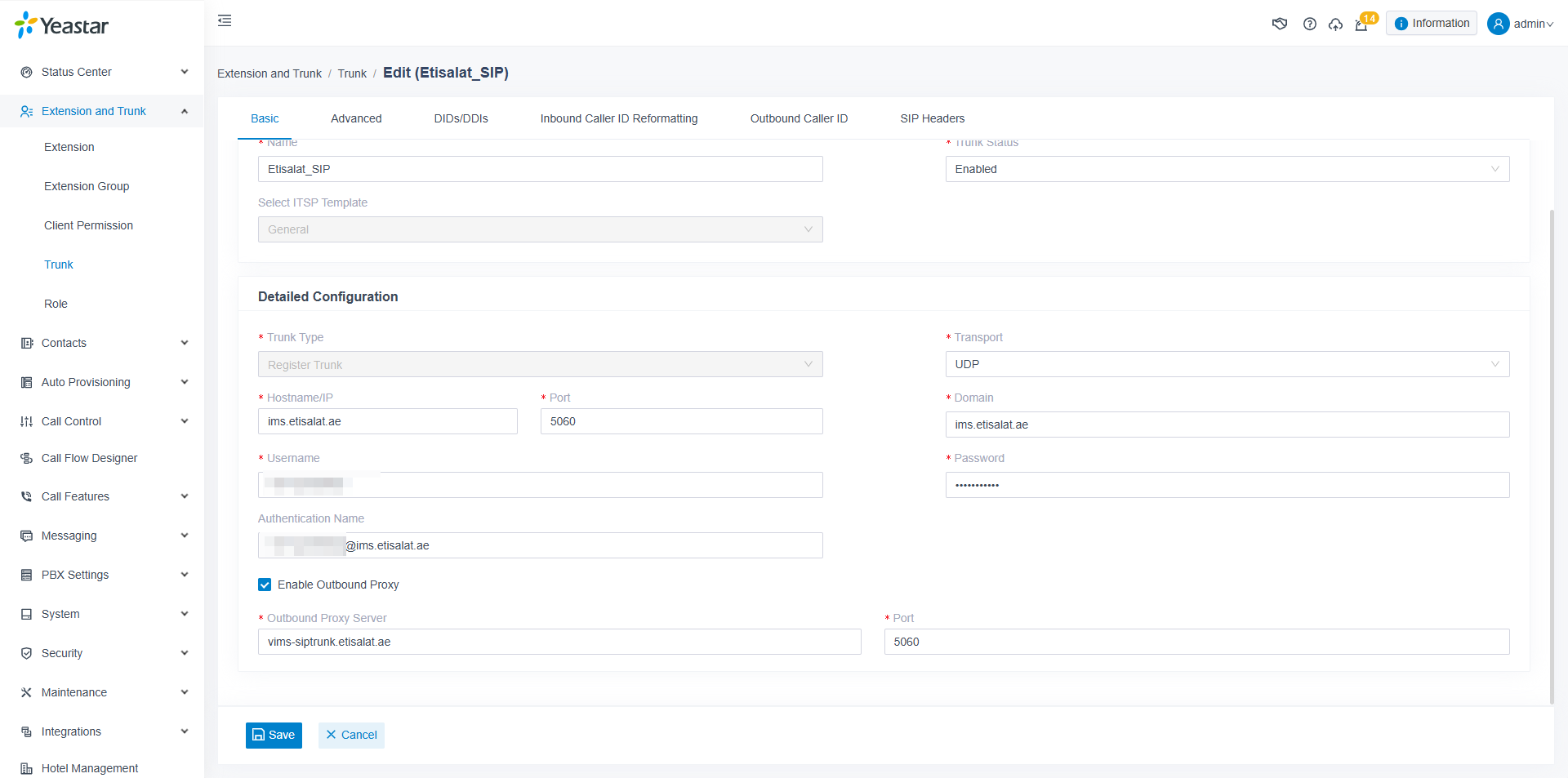

The trunk configuration screenshot is as follows

S-Series

P-Series

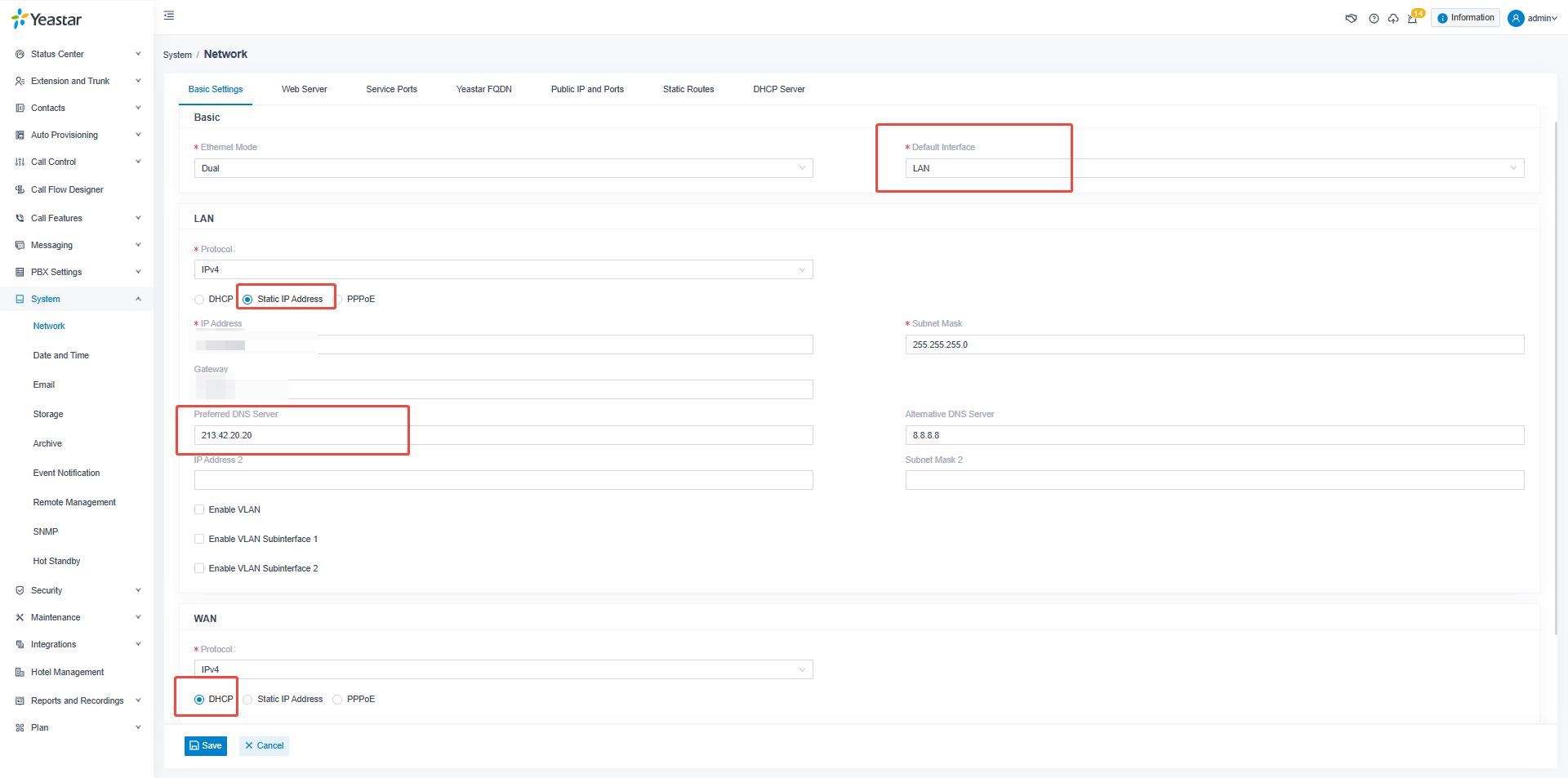

The default port is the LAN port (LAN port must to be a static IP address, can't use DHCP mode), and the WAN port is connected to the dedicated line. DHCP mode.

Add a WAN port DNS to the LAN port. Usually add 213.42.20.20 to LAN Preferred DNS Server. Add 8.8.8.8 as the Alte.

S-Series

P-Series

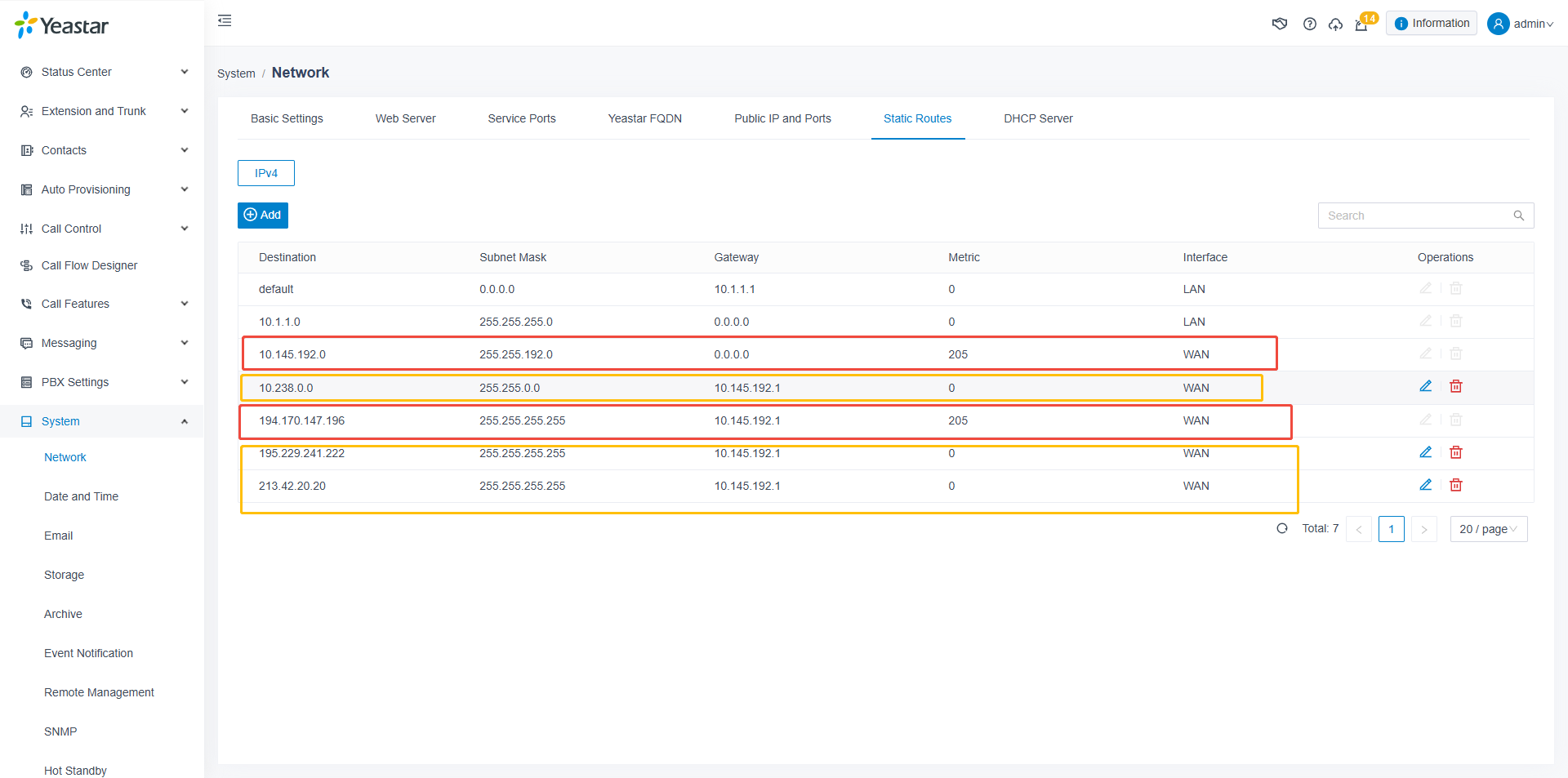

The dedicated line is connected to WAN port and two WAN port static routes are automatically added. Depending on its gateway, add three additional static routes, as shown below with the three addresses highlighted in yellow (10.238.0.0/255.255.0.0; 195.229.241.222/255.255.255.255; 213.42.20.20/255.255.255.255).

S-Series

P-Series



Afterward, check the trunk status to see whether it is registered or not.
