Applicability
- PBX model: P-Series
- Mitel model: 5XXX, 6XXX series (SIP firmware based)
- Firmware version: Any
Procedure

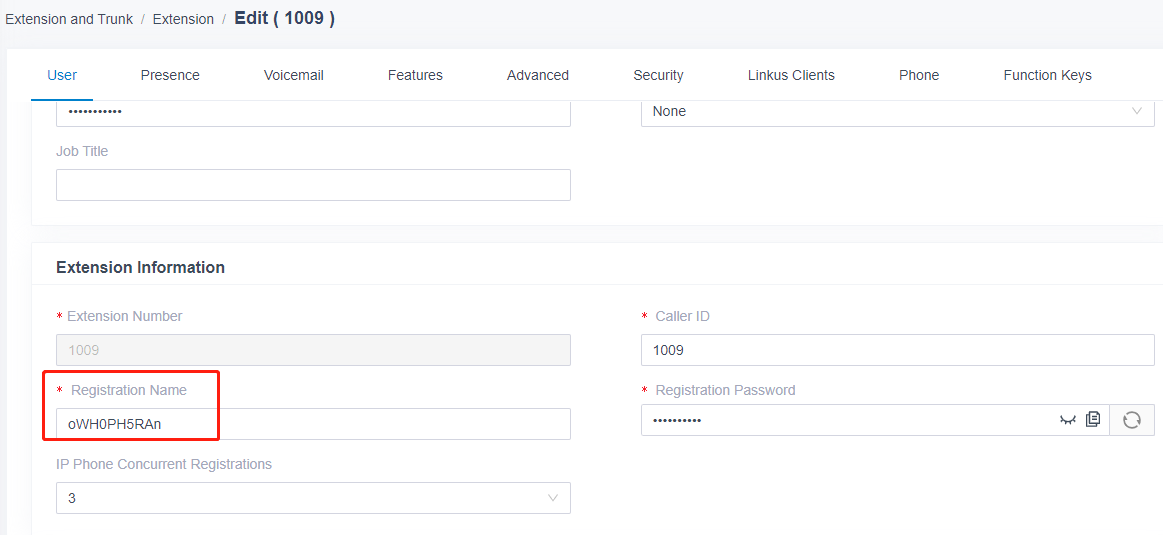

1. Get Extension registration information from PBX web interface.
The Registration Name is used to be filled in the field Authentication Name on Mitel phone.
2. Go to Mitel phone web interface.
Use http://{IP phone's IP} to login.
Username: admin, password: 2222
Then, go to the menu path: Advanced Settings/ Line 1
Configure the settings like following figure:

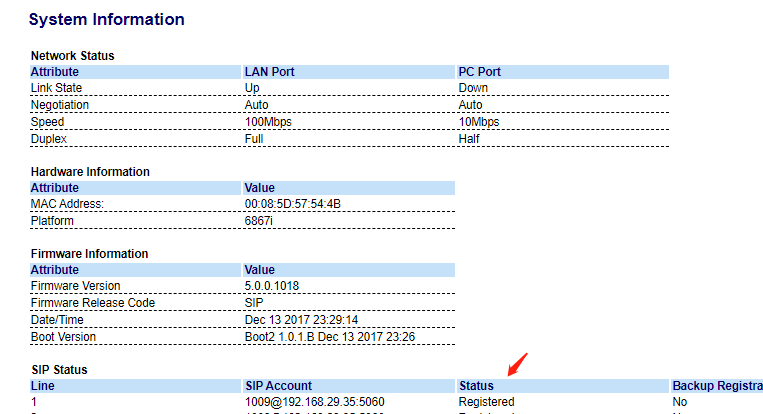

Save the configs, the phone will register automatically.
