Applicability
- PBX model: P-Series
- Avaya model: VVX series
- Firmware version: Any
Procedure

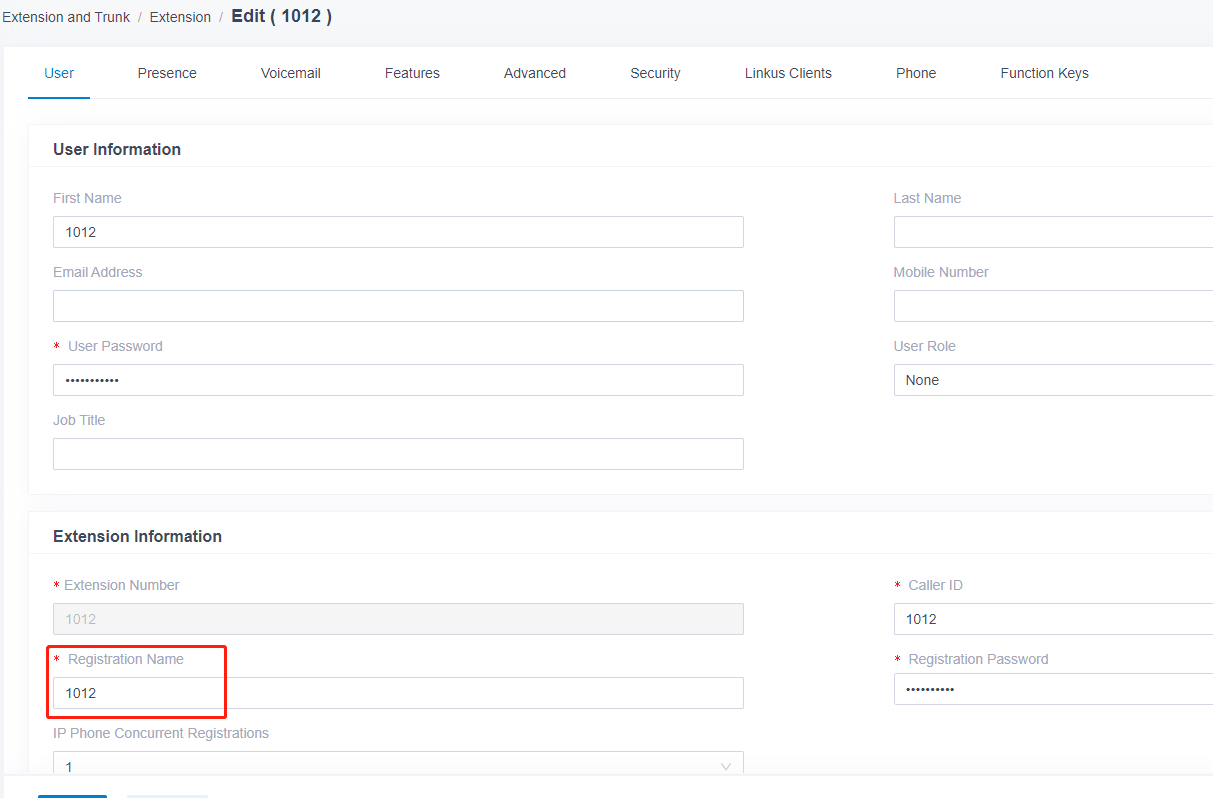

1. Modify the Registration(Authentication) Name the same as the extension number.
It's due to the Ploycom VVX phone doesn't support a different Registration(Authentication) name.
2. Go to Polycom VVX phone web interface.
How to Enter Polycom VVX Series Web interface? Download the video attached in the bottom of this article or click here. And refer to it.
Check the options
- Web Server: Enabled
- Web Config: HTTPS only
After the settings takes effect, use https://{IP phone's IP} to login.
Username: admin, password: 456
Menu path: Settings/ Lines

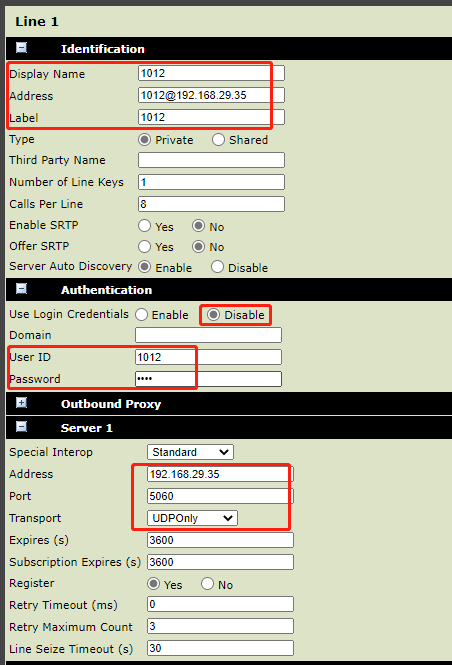

Configure Line 1:
Note that the Address field in the Identification section should be "{extension number}@{PBX IP or URL}".
Save the configs, the phone will register automatically.
