Set Time Condition for IVR in S-Series PBX

In some specific scenarios, such as set time condition in IVR for hospital customer. They need to press 1, the call will go to extension 100 during working hours. But if caller presses 1 during after-working hours, call will go to mobile number. But now the time condition is only available for the inbound route.

Therefore we figure out the solution for this case. First please see the call flow:

Inbound call  ----PSTN line----> IVR ---> Dummy Extension ---> Always Forward to a mobile number  ---> Loopback Outbound Route --- Loopback SIP trunk----> Loopback Inbound Route ---> Call to Extension  or Call to Mobile Number


IVR Inbound Router Setting

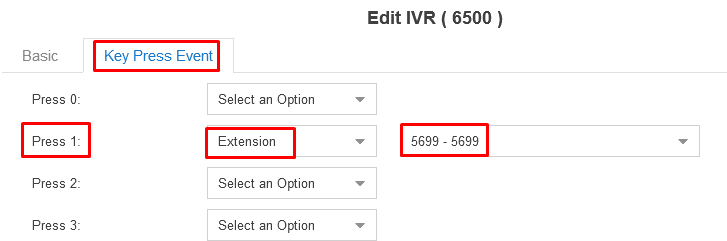

Step 1. Create an IVR and Set Press 1 to any like dummy extension 5699 (unregsitered ).

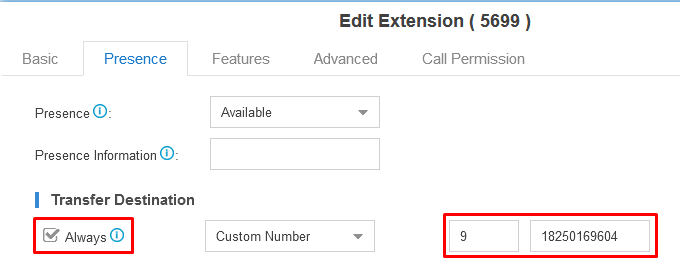

Step 2. Set always call forwarding to Mobile number for the extension 5699

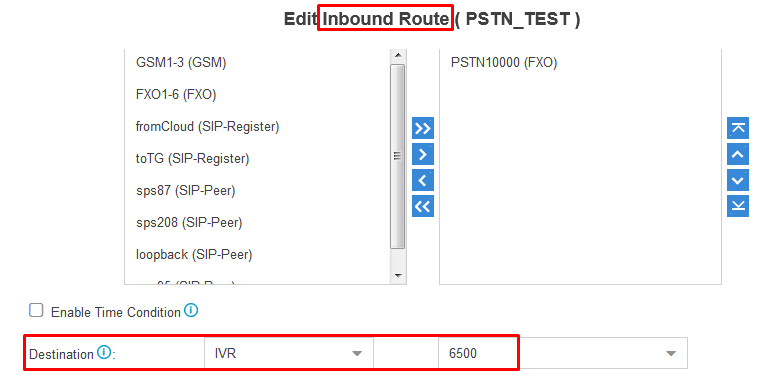

Step 3. Create an Inbound Route and set destination as IVR 6500



Outbound Route for Mobile number

Create an Outbound Route to mobile with GSM trunk selected.





Loopback Routing

Step 1. Create Loopback Peer SIP trunk with IP address 127.0.0.1

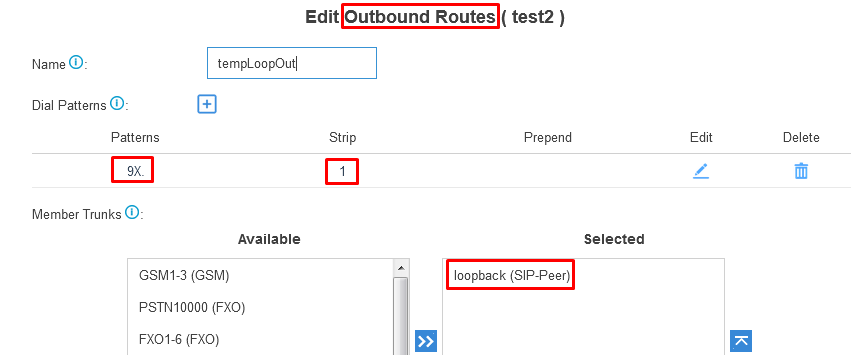

Step 2. Create an Outbound Route with loopback trunk selected

Patterns: 9X. // here patterns should match the mobile number that configured on the dummy extension.
Strip: 1
Member Trunks: SIP trunk created in Step 1.






Step 3. Create an inbound route with Loopback trunk selected and enable time condition.

workday: outbound route to mobile
after-working: extension 5688



Finally try to test.
